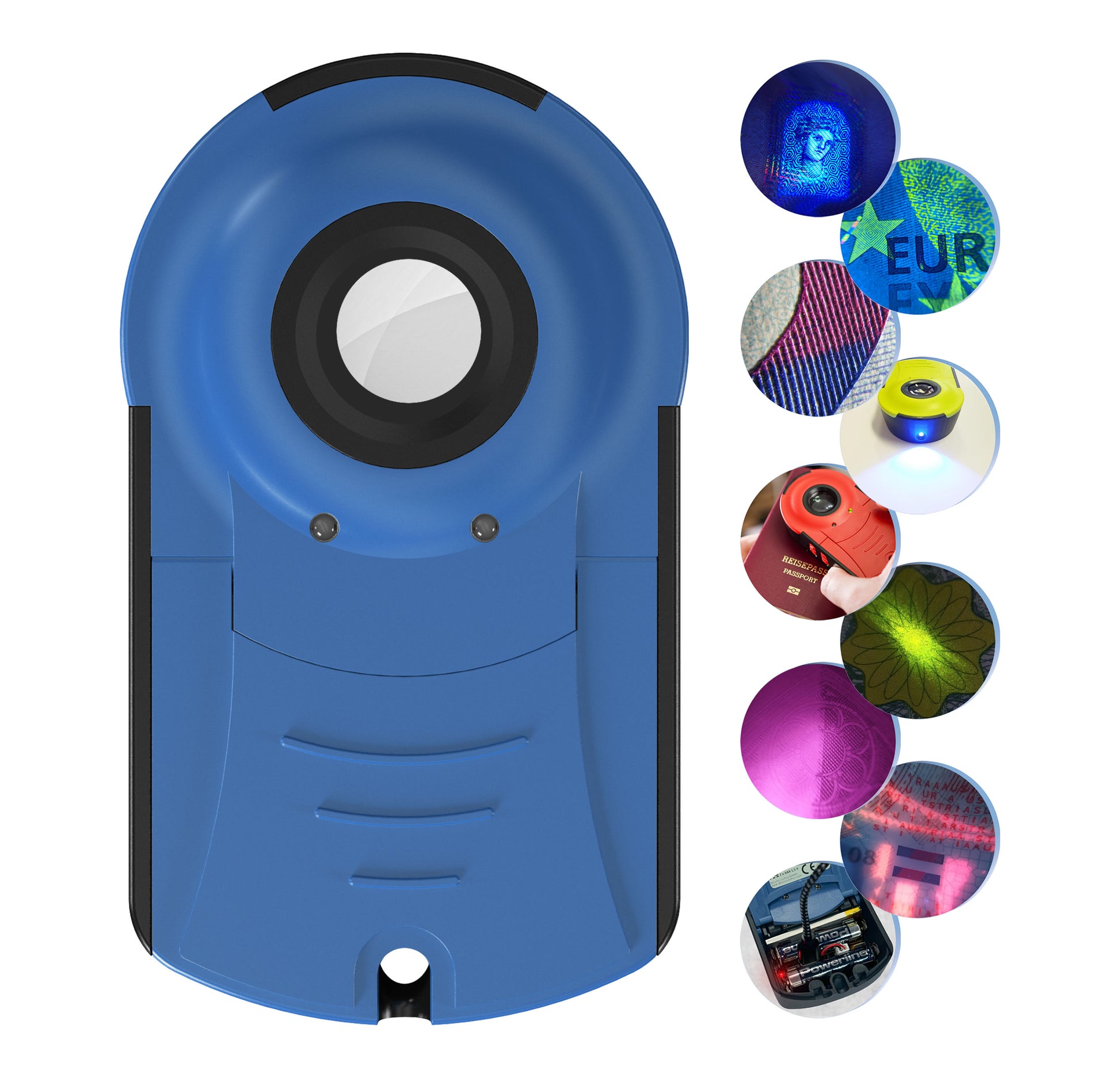

• Doculus Lumus device 22x Expert Edition in blue. All features are displayed on the right.
  • Standard features: White incident light, strong UV 365 nm light and rotating oblique light. Included optional feature: FUV front UV-Torch
  • Included optional features: RFID ICAO Check, AS Anti Stokes Laser, IR Infra-Red LED and UVB/C LEDs
  • AAA battery powered and LI Lithium Ion battery. 2 years warranty
  • Doculus Lumus device 22x magnification
  • Doculus Lumus devices are IP54 splash-proof
  • The Doculus Lumus devices are made in austria and are 1.5 meters drop proof
  • On the left the scope of delivery is displayed. Standard accessories such as a Smartphone Clip and Visa Sticker Specimen are included
  • Standart accessories such as Security Handstraps, Lens Cleaning Cloth, Charging Cable, Batteries, Quickguide, referral Card and further accessories. The Reticle Card is an included optional accessory
1 9

Doculus Lumus Expert Edition 22x

Doculus Lumus Expert Edition 22x

€604,80
€604,80
Sale Sold out
Taxes included. Shipping calculated at checkout.
Colour: Blue

Expert Edition for Forensic Experts, Security Printers, Second Line Officers, ...

Magnification:

  • 22x: Magnification

The 22x magnification lens is designed for those who need to focus on the finest security printing details, offering higher magnification for the most intricate analyses. The 15x magnification lens, on the other hand, is our most versatile model, preferred by most customers for its perfect balance between detail accuracy and field of view.

Not sure what to choose? Contact our experts, we will assess your specific field of work and provide tailored advice.

Included Standard Features:

  • White Incident Light: 4 LEDs
  • UV Light 365 nm: 4 LEDs
  • Rotating Oblique Light: 8 LEDs
  • Rotating Incident Light
  • Torchlight Mode
  • Steady Light Mode
  • Left- / Right Handed Mode
  • Robust Housing
  • Drop-Proof up to 1.5 meters
  • Splash-Proof IP54

Included Optional Features:

  • FUV: Front UV Torch 365 nm
  • RFID: ICAO Quick Check
  • AS: IR Laser 980 nm for Anti-Stokes
        Features
  • IR: Infra-Red LED 870 nm
  • UVB/C:
    • 2 UVB LEDs for 313 nm features
    • 2 UVC LEDs for 254 nm features

Included Energy Sources:

  • 2 AAA Batteries (included)
  • LI: Lithium Ion Battery 300 mAh
        (USB-C charging cable included)

Included Accessories:

  • Smartphone Clip
  • Visa Sticker Specimen
  • Reticle Card (linear, radial and angular)
  • Safety Handstrap
  • Lens Cleaning Cloth
  • Quickguide
  • Referral Card

Dimensions:

(device without packaging or accessories)

  • Lenght: 108 mm
  • Width: 63 mm
  • Height: 28 mm
  • Weight: 142 g (device with batteries)

For a more basic configuration, see Frontline Edition

Learn more about available features and accessories on the Doculus Lumus homepage.

Safety Instructions in all EU languages below.

View full details
Safety Instructions Doculus Lumus Document Checking Device

General Hazard

Warning: Improper usage can cause injuries and damage. This product, the batteries and the accessories are no toys and must be kept out of reach of children.

Optical, Electrical & Mechanical Hazards

Warning: Do not look directly into the lights. Prolonged exposure to strong white light can damage eyes.

Warning: The proper function of certain light sources cannot be determined with the naked eye, so always use test papers or documents.

Warning: UV radiation from this product can cause eye and skin irritation. Aim light sources only at documents or use suitable shielding. Never look directly at the LEDs.

Warning: Magnetic field (devices with RFID option). This device generates a weak HF field (13.56 MHz) during operation. Maintain distance from other electronic devices. Special caution required for pacemakers, implanted defibrillators and hearing aids.

Warning: Eye strain possible with extended use. Take a 10–15 minute break every hour. If discomfort occurs, stop using the device and consult a doctor.

Warning: Invisible laser radiation (980 nm) – laser class 3R. Avoid direct eye or skin exposure to the laser beam. Use only on flat documents with the opening fully covered. When the laser is active (red LED lit), hold the device horizontally with the opening facing downward. Never point the bottom at people. Do not clamp the activation buttons. The laser option („AS“) is indicated by a laser warning symbol on the housing and on the label in the battery compartment.

Warning: The optical lens can lead to inflammation of objects if the device is exposed to direct sunlight (burning-glass effect). Always keep the device covered when not in use.

Risk of Damage

  1. IP 54 – not water-resistant – keep away from water.
  2. Do not reach into the device or insert foreign objects.
  3. Do not open the device.
  4. Use only for document checking.
  5. Avoid extreme temperatures.
  6. Do not use sprays, aggressive, alcohol-containing or flammable cleaning agents.
  7. Remove batteries during extended storage to prevent leakage.

Batteries

Caution: Observe correct polarity (+/–). Always replace both batteries at the same time. Do not short-circuit batteries. Leaked or damaged batteries can cause health issues.

Environmental Conditions

Operating range: –20 to +55 °C; ≤80 % relative humidity, non-condensing.

Disposal: Do not dispose of batteries with household waste. Return to collection points at battery retailers or municipal hazardous-waste centres. Within the EU, the device and accessories must be collected and disposed of separately.

Declaration of Conformity (EU)

CE: The manufacturer of the device hereby declares that this device conforms to the requirements and all other policies. A copy of the entire declaration can be provided on demand.

RoHS: The product conforms to the requirements of the RoHS directive on the reduction of hazardous substances.

Download Safety Instructions in all EU languages
